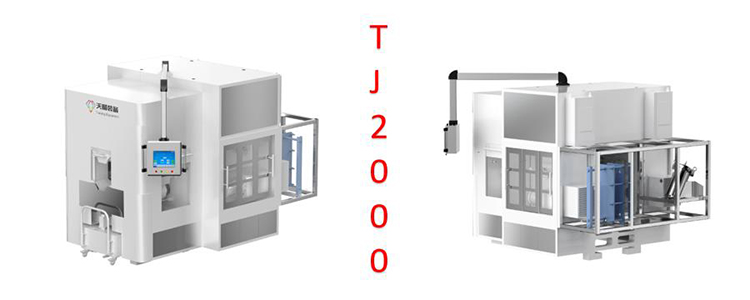

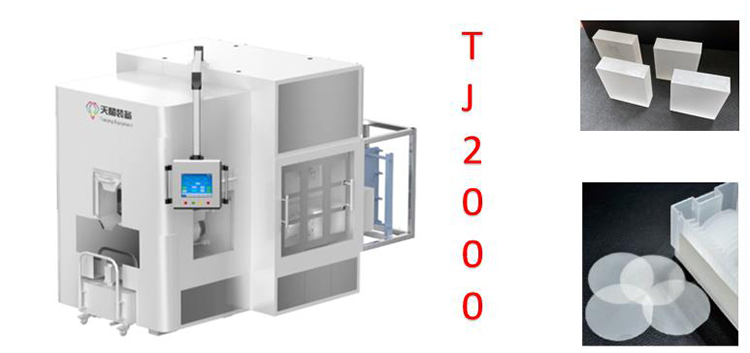

TJ2000 UPSIDE-DOWN ultra-precision multi-wire cutting machine is the high-speed model of our company's current multi-wire cutting machine products. It is mainly used for batch processing of all kinds of hard and brittle materials. It adopts less number of wire wheels to meet customers' higher requirements for processing efficiency, operation stability, process applicability and economy. Using the high-speed reciprocating motion of diamond wire with diamond particles, the magnetic material in the processing area is cut, and then the technology of manufacturing thin slices of uniform thickness, with the advantages of high reproduction efficiency, high product quality, low processing cost, high control accuracy, green environmental protection, and convenient waste recycling.

■ The overall design is simple, with modern design, a variety of colors to choose from.

■ The appearance design adopts strong lines and geometric proportion segmentation, reflecting the product characteristics of precision equipment.

■ The whole shield automatically rises and falls, easy to operate.

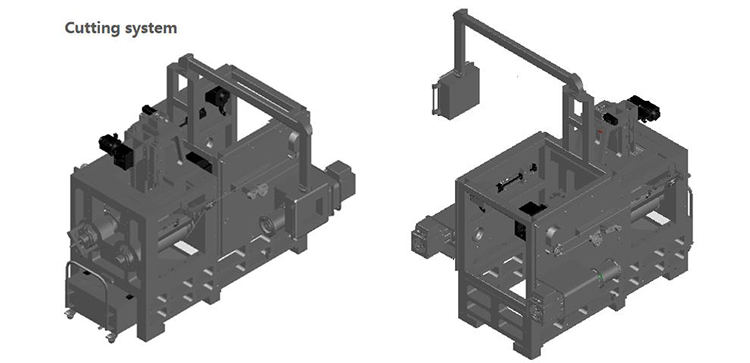

■ The machine structure layout design: according to the function of the partition design, the main cutting area and the retracting and releasing line operation area separation, for the retracting and releasing line system to provide a good working environment, cutting area can achieve open operation, easy to operate and maintain.

■ Simplified guide wheel design: Six guide wheels are optimized to reduce consumables and energy consumption and equipment operating costs.

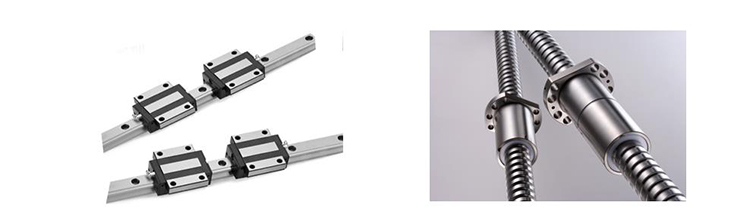

■ The main transmission parts of TJ2000 are imported to ensure the precision of the whole machine.

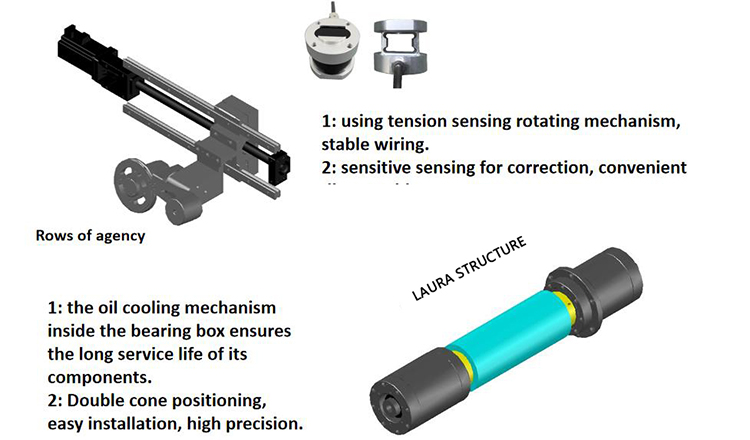

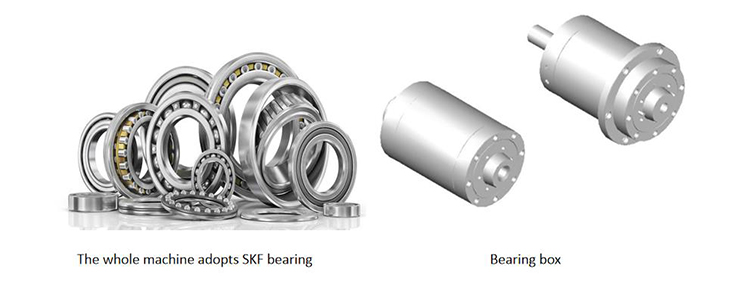

■ Spindle drive adopts bearing box module, simple installation, double cone positioning, high machining accuracy.

■ The main transmission parts of TJ2000 models are imported parts to ensure the precision of the whole machine.

■ The overall noise of the equipment is low to avoid hearing damage of workers.

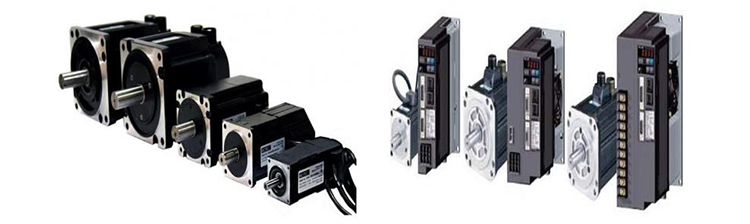

■ Laying, winding, laying, spindle running, cutting line tension and table feed are all driven and controlled by servo motor.

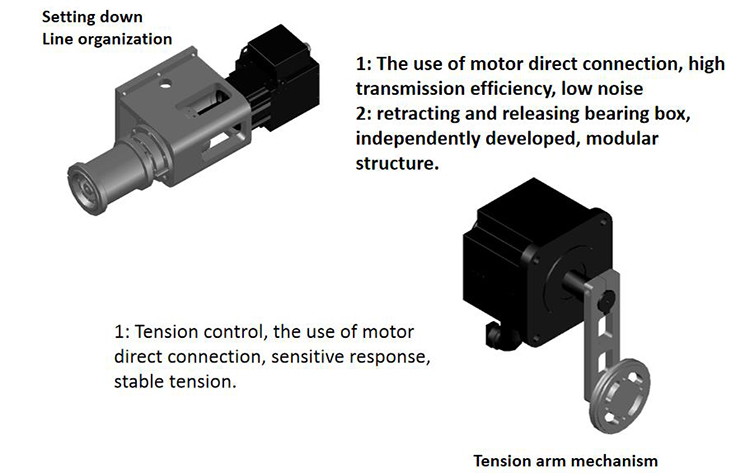

■The closed-loop feedback control mode is adopted to control the tension of the supply line and the winding line, which ensures the constant tension of the cutting line during the cutting process.

■At the same time with tension warning function, effectively avoid the abnormal tension fluctuation caused by wire break fault.

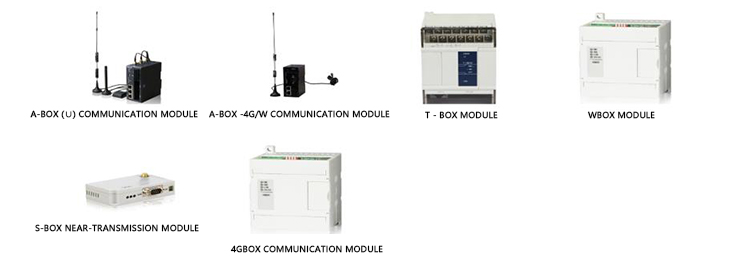

■ Tianjing all series of intelligent devices are equipped with cloud system, remote monitoring, maintenance functions, to provide customers with the fastest and safest after-sales service, so that the use becomes easier!

■ Purchase equipment and can assist with staff training

■ Provide the most perfect supply of consumables

■ Provide technical support for various cutting processes

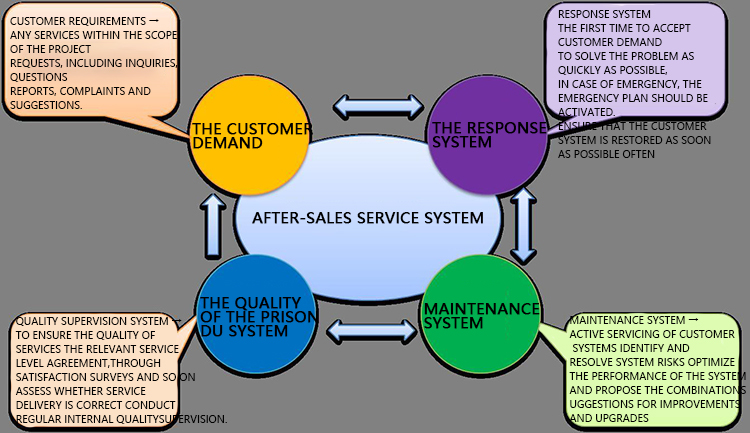

■ Perfect after-sales team, 24 hours service

■ Provide cloud service management system
